Custom MTK6771 Android 10 PCBA Motherboard
Products Specification
| Product Name | PCBA |
| Chipset | MT6755 |
| CPU | Quad-core A53 2.0GHz |
| OS | Android 6.0 |
| Memory | 2GB+16GB/4GB+64GB |
| Display | 1920*1080 |
| Camera | 13MP+13MP |
| Video | Decode | 1080p 30fps H.264/H.265 |
| Encode | 1080p 30fps MPEG4 |
| Network | FDD-LTE | B1/B3/B5/B8 |
| TDD-LTE | B38/B39/B40/B41 |
| WCDMA | B1/B5/B8 |
| TD-SCDMA | B34/B39 |
| EVDO/CDMA | 850/900/1800MHz |
| Wi-Fi | 2.4GHz/5GHz |
| Bluetooth | BLE 4.0 |
| GNSS | GPS /BEIDOU |
| Power | 3.5V-4.35V, 3.8V Type |
| Sleep current | <10ma |
| Operating current | TBD |
| Working temperature | -20 ℃~+70 ℃ |
Products Features
As the world’s first product to use TSMC’s 28nm HPC+ process, MediaTek Helio P10 (MT6755) allows for reduced processor power consumption, saving up to 30% more power compared to existing smartphone SoCs manufactured using the 28 HPC process.

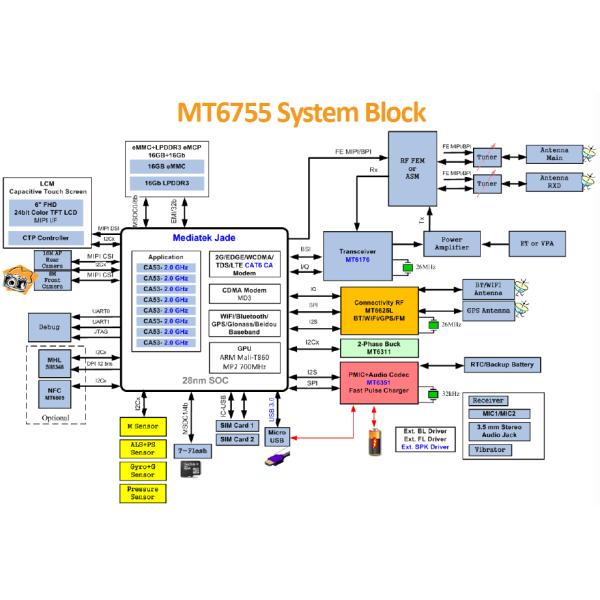

The MT6755 core board is a high-performance, Android-enabled 4G intelligent module based on MediaTek MT6755 platform, supporting LTE-FDD/LTE-TDD/WCDMA/TD-SCDMA/EVDO/CDMA/GSM and other systems a/b/g/n, BT4.0LE near-field wireless communication, support FOR GPS/GLONASS/Beidou multi-system satellite positioning, support for a variety of voice and audio codecs, internal integration Mali-T860 MP2 high-performance graphics engine, smooth playback of 1080P video, multiple audio, video input and output interface and rich GPIO interface.
Our Service
1. Offer an OS customization service for the PCBA motherboard and an Android APP development in a very short time.
2. Provide free/paid source code.
3. Provide one stop full solution for android tablet pc, including, PCBA hardware, software, relative parts customization, for example housing/mold, camera, touch screen, display...
4. 24x7 hours engineer services
